Lost or damaged screws from your TRIDENT airsoft gun? Below, you will find specifications for the various external screws found on not only the TRIDENT series, but also on the ALPHA, LVOA, and REC7 models.
Suitable replacements may be found at your local home hardware store or other specialty store.
To avoid losing screws, we recommend that you check for loose screws as part of your regular maintenance routine.
Don't over torque the screws and make sure you are using the correctly sized driver to avoid damage. Poor quality, out-of-spec, worn out, or incorrect tools greatly increase the probability of stripping screws.
Muzzle Device / Flash Hider Set Screw
- Type: Cup Point Set Screw
- Threading: M3 x 0.5mm
- Overall length: 3mm
- Allen key size: 1.5mm
Magazine Catch Screw
- Type: Flat Head Machine Screw
- Threading: M2 x 0.4mm
- Overall length: 8mm
- Driver Size: Phillips #1

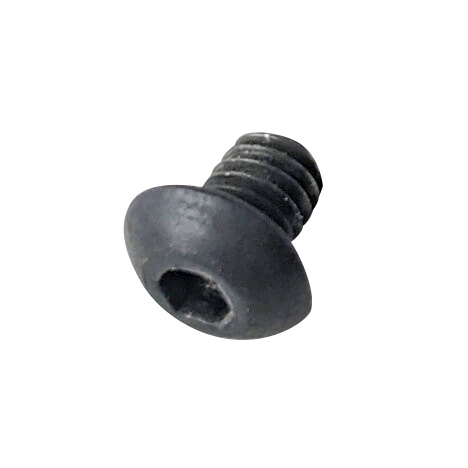

Receiver Pin Screw Cap (Type 1)
- Type: Button-Head Socket Cap Screw
- Threading: M4 x 0.7mm
- Screw Threading Length: 5mm
- Allen key size: 2.5mm

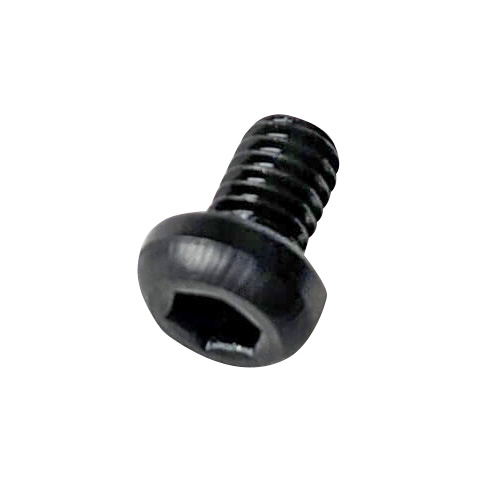

Receiver Pin Screw Cap (Type 2)
- Type: Low-Profile Socket Head Cap Screw
- Threading: M4 x 0.7mm
- Screw Threading Length: 6mm
- Allen key size: 2.5mm
Ambidextrous Selector Screw
- Type: Flat-Head Socket Cap Screw
- Threading: M2.5 x 0.45
- Overall length: 8mm
- Allen key size: 1.5mm
Motor Plate Mounting Screws
- Type: Flat-Head Machine Screw
- Threading: M3 x 0.5mm
- Overall length: 10mm
- Driver Size: Phillips #1
Buffer Tube Screw (Old Version)
- Type: Flat-Head Machine Screw
- Threading: M6 x 1mm
- Overall length: 25mm
- Driver Size: Phillips #2 or #3
- Old version where the screw threads into the receiver only.
Buffer Tube Screw (Current Version)
- Type: Flat-Head Screw
- Threading: M5 x 0.8mm
- Overall length: 40mm
- Driver Size: Phillips #2
- Current version where the screw threads into the spring guide.
